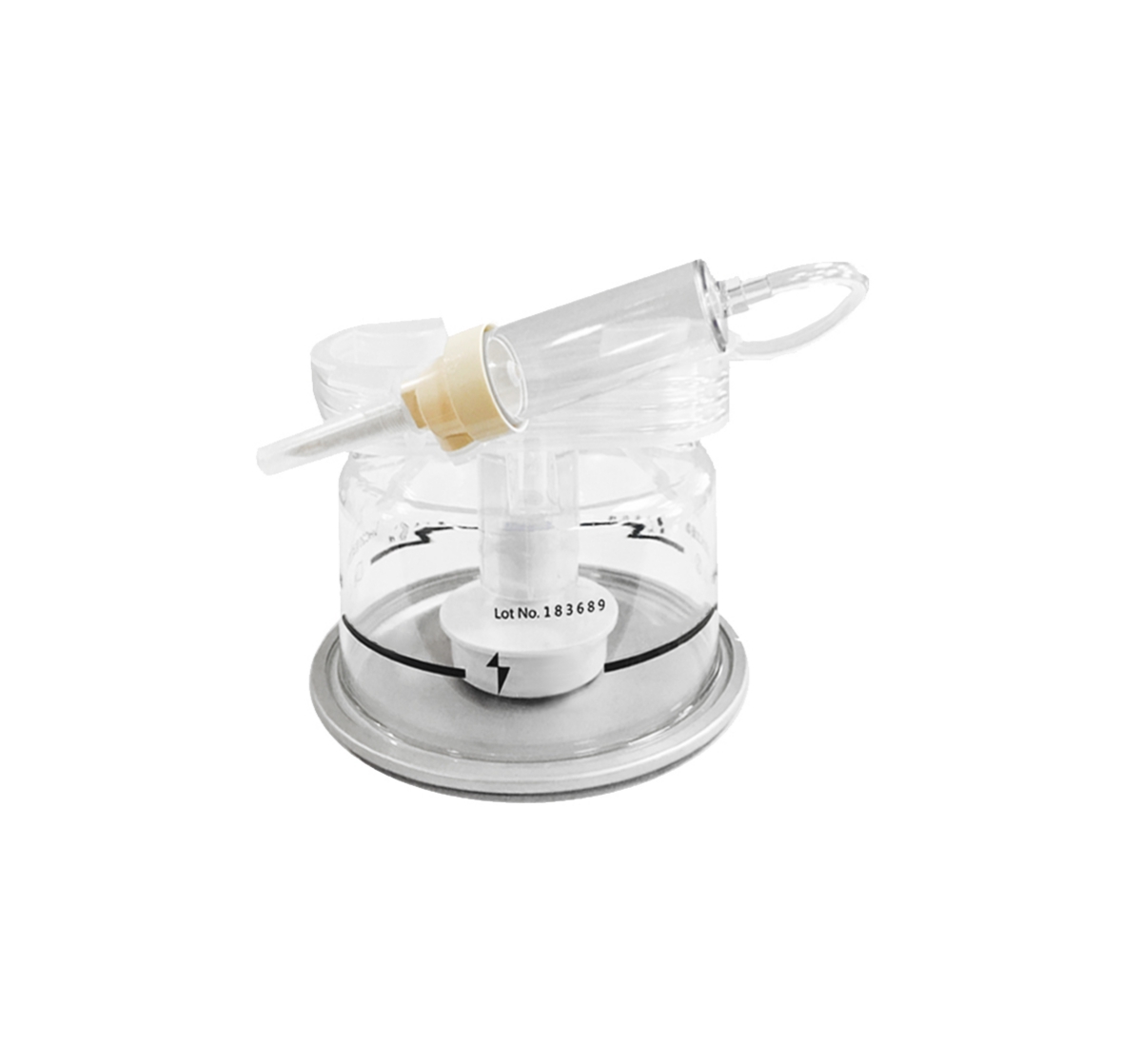

VHC20 Humidifier Chamber (Disposable, For Adult)

The adult reusable water chamber is a perfect match with Pigeon Medical respiratory humidifier. The dimension of the base is based on universal standards which not only capable of Pigeon Medical’s own humidifiers but also most of the humidifiers in the general market.

Category: Respiratory Humidifier

Product Description

Working Principle of VHC20 Disposable Humidifier Chamber For Adult

Assemble the water chamber onto the humidifier heated plate and fill water until the maximum level. Use nesseccary adaptors to connect with breathing circuit and check if there is no water or gas leakage. Autofeed function provide automically water refills and dual-float mechanism for added safety to prevent the chamber overfilling. The maximum usage period is 7 days or single patient.

Features of VHC20 Disposable Humidifier Chamber For Adult

Disposable, with autofeed function
Provide different connectors according to customer’s requirement
Sealed system designed to minimize the risk of infection
Universal standard, can be used on different humidifiers in the market

Specification of VHC20 Disposable Humidifier Chamber For Adult

Model No.	VHC20
Type	Disposable
Application	Adult
Fill Water Type	Automically
Interface Connections	ISO 5356-1 (22mm Male)
Compressible Volume (Empty)	440mL
Compressible Volume (Full)	260mL
Maximum Water Capacity	180mL
