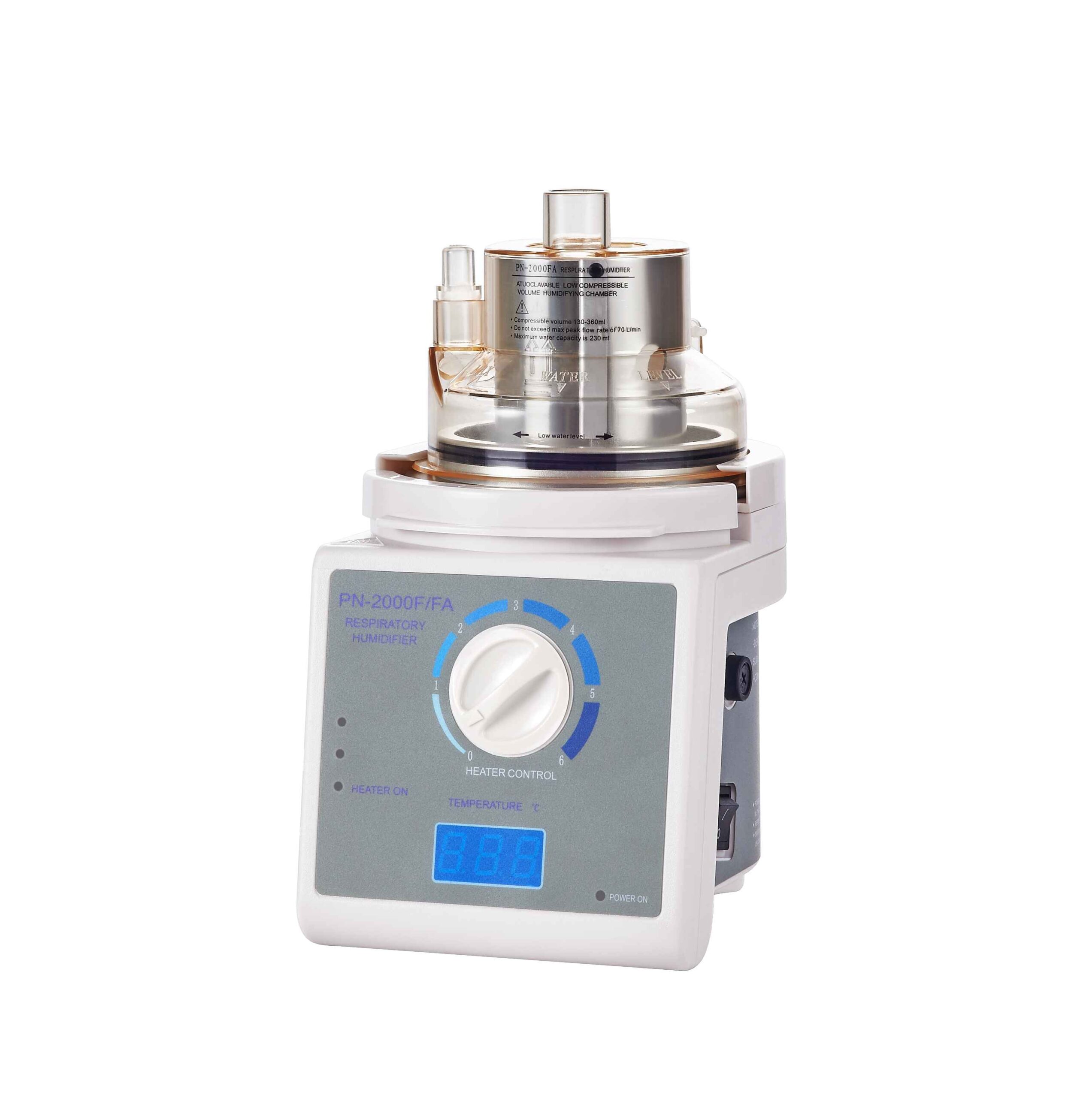

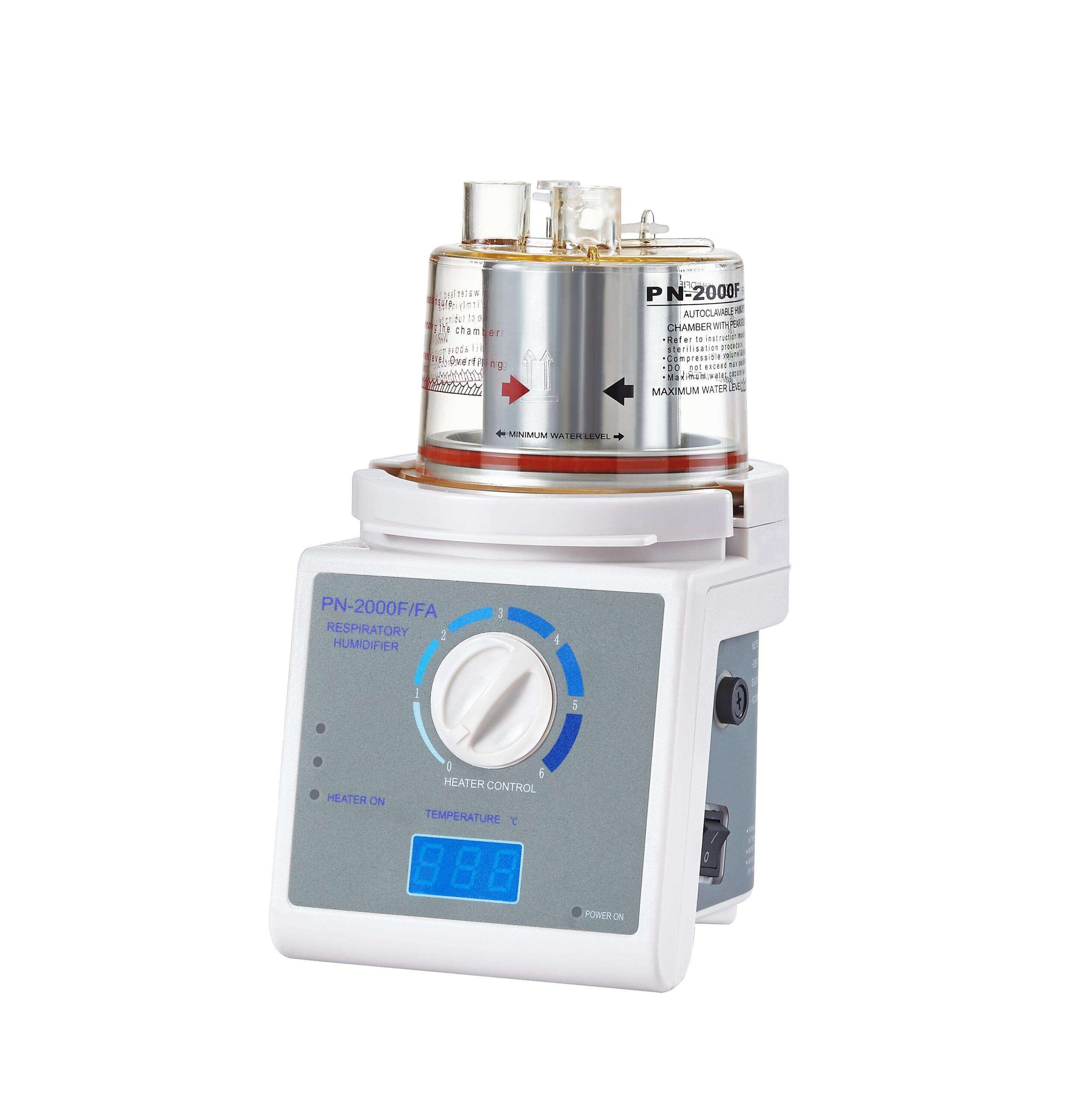

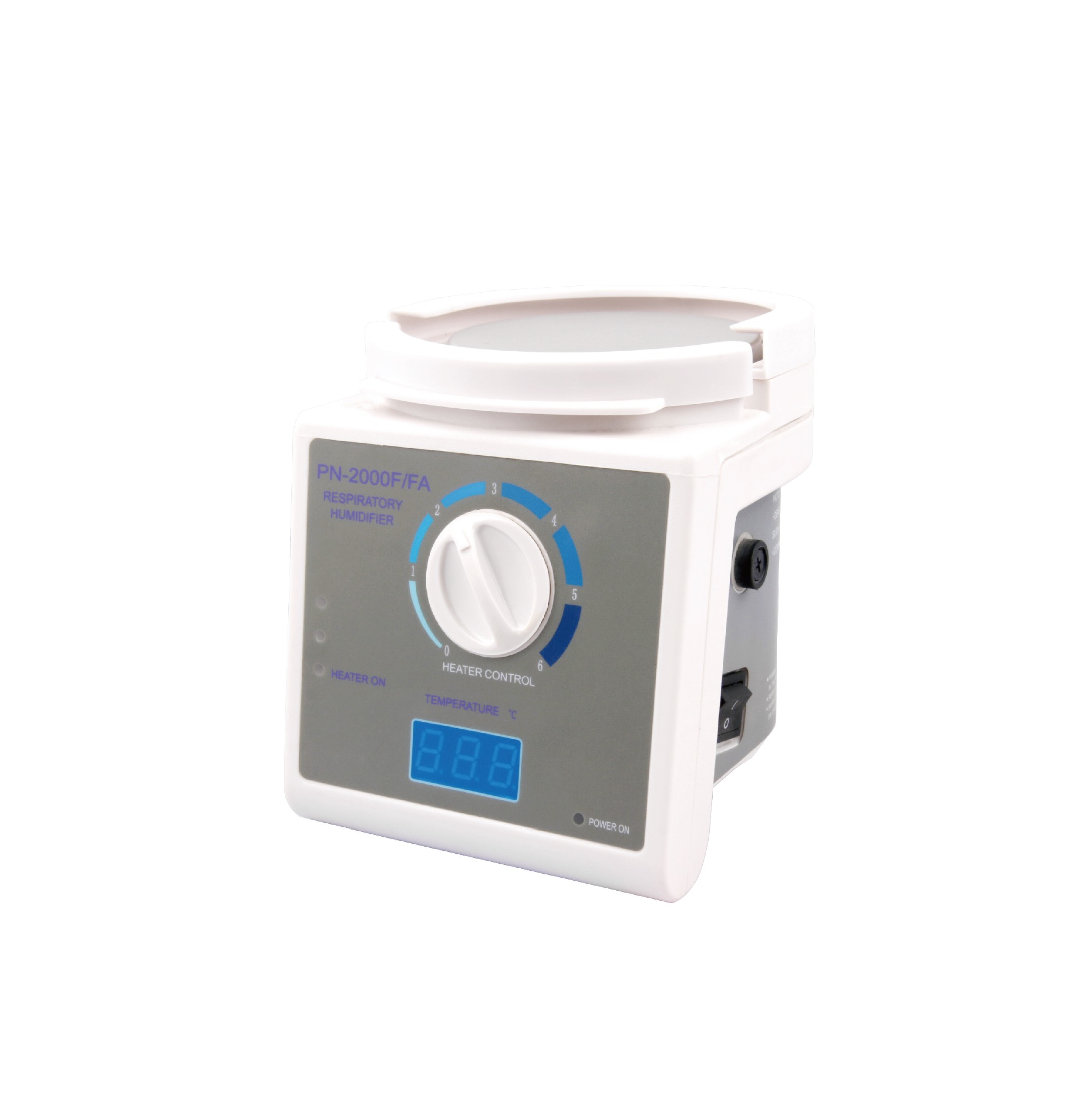

PN-2000F/FA Respiratory Humidifier

Pigeon Medical Respiratory Humidifier is a device designed to provide artifically warmed and humidified conditioning respiratory gas to patient in require positive pressure breathing assistance or mechanical ventilation. In case your breathing circuit does not include heated wire, Pigeon Medical Respiratory Humidifier PN-2000FA will be your best choice with the highest cost performance. The temperature of heated plate can be simply controlled within 38oC to 70oC in 6gears. The device also includes temperature sensor and the real-time temperature will be shown on its built-in digital display.

Category: Respiratory Humidifier

Product Description

Working Principle of PN-2000F/FA Respiratory Humidifier

Cold and dry air travelled from the respiratory gas supply via the breathing circuit, en route passing Pigeon Medical respiratory humidifier chamber, meanwhile absorbing the heat and water vapor without direct contact with water.

Features of PN-2000F/FA Respiratory Humidifier

Simple temperature control setting from level 0-6, which heated plate from 38℃ to 70℃
Match with various ventilators
Provide high quality aluminium clamp and slot plate for the blender to safely hang on the trolley

Specification of PN-2000F/FA Respiratory Humidifier

Model	PN-2000F/PN-2000FA
Power Source	AC 220V, 50-60Hz (Optional: AC 110V, 50-60Hz)
Heated Plate	150W
Thermal Cut Off	95±6℃
Display	Three digit, 0.56 inch, 7 segment Led
Temperature Monitoring	0-75℃
Max-temperature of Heated Plate	85℃
Heated Wire	/
Power Rate	150W
Alarm	No
Temperature Control Setting	Heated Plate Temperature: Level 0: 38℃ Level 1: 43℃ Level 2: 48℃ Level 3: 53℃ Level 4: 58℃ Level 5: 63℃ Level 6: 68℃ Highest Temperature: 70℃
Range	10-70℃, Accuracy: ±2℃ (In 25-45℃ temperature range)
