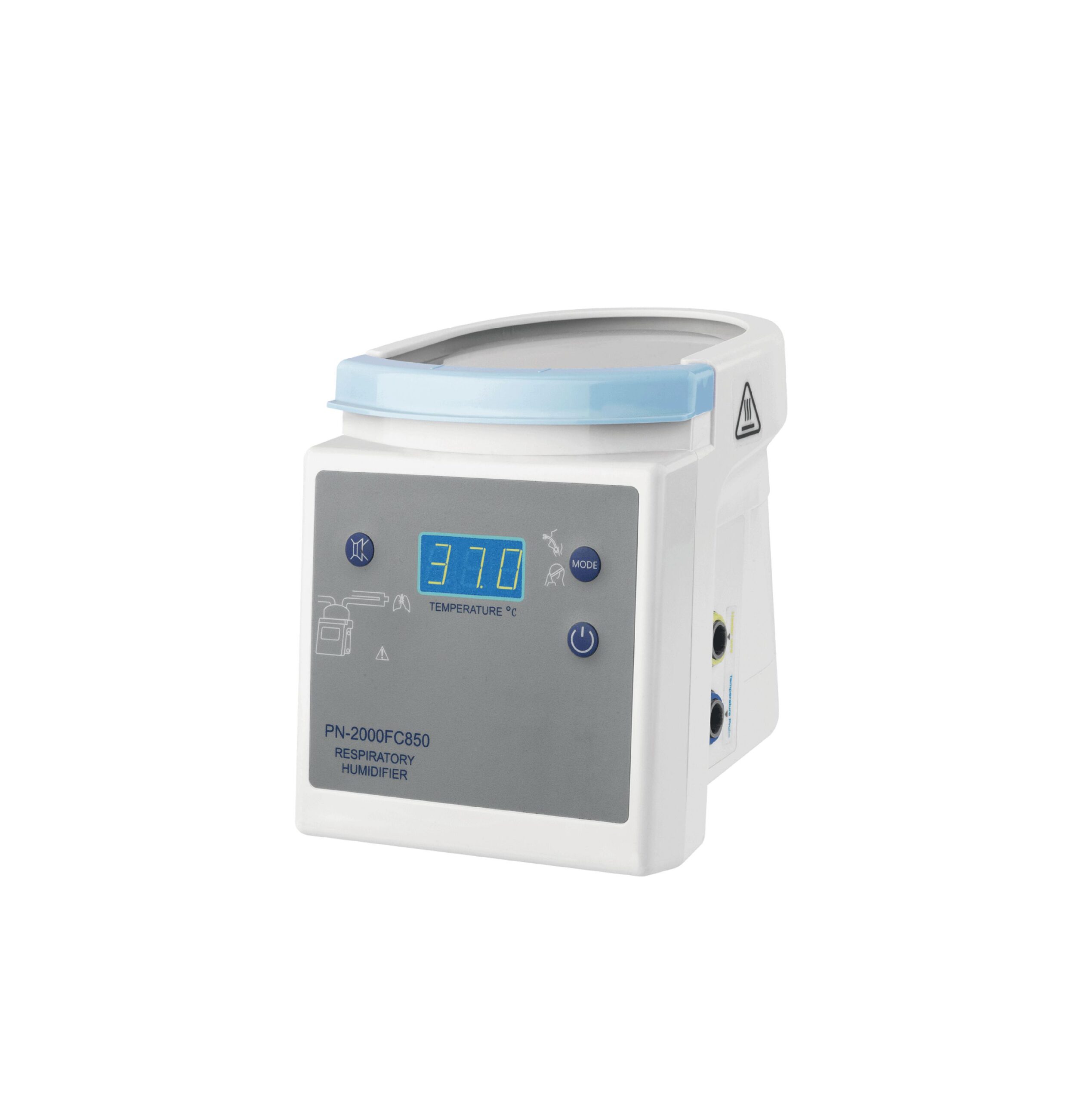

PN-2000FC850 Respiratory Humidifier (Support Heated Wire)

Proudly introduce Pigeon Medical’s latest and most advanced respiratory humidifier PN-2000FC850. Double temperature sensor and digital display cooperate with the intelligent system, which provides continuous monitor and automatic temperature control by receiving real-time data collected by the proximal and distal temperature probs.

By choosing between invasive and non-invasive mode, the device will spontaneously set up the optimal temperature without manual control required. Respiratory humidifier PN-2000FC850 also equipped with flow detection function to strengthen the flow accuracy and prevent leakage.

Category: Respiratory Humidifier

Product Description

Working Principle of PN-2000FC850 Respiratory Humidifier

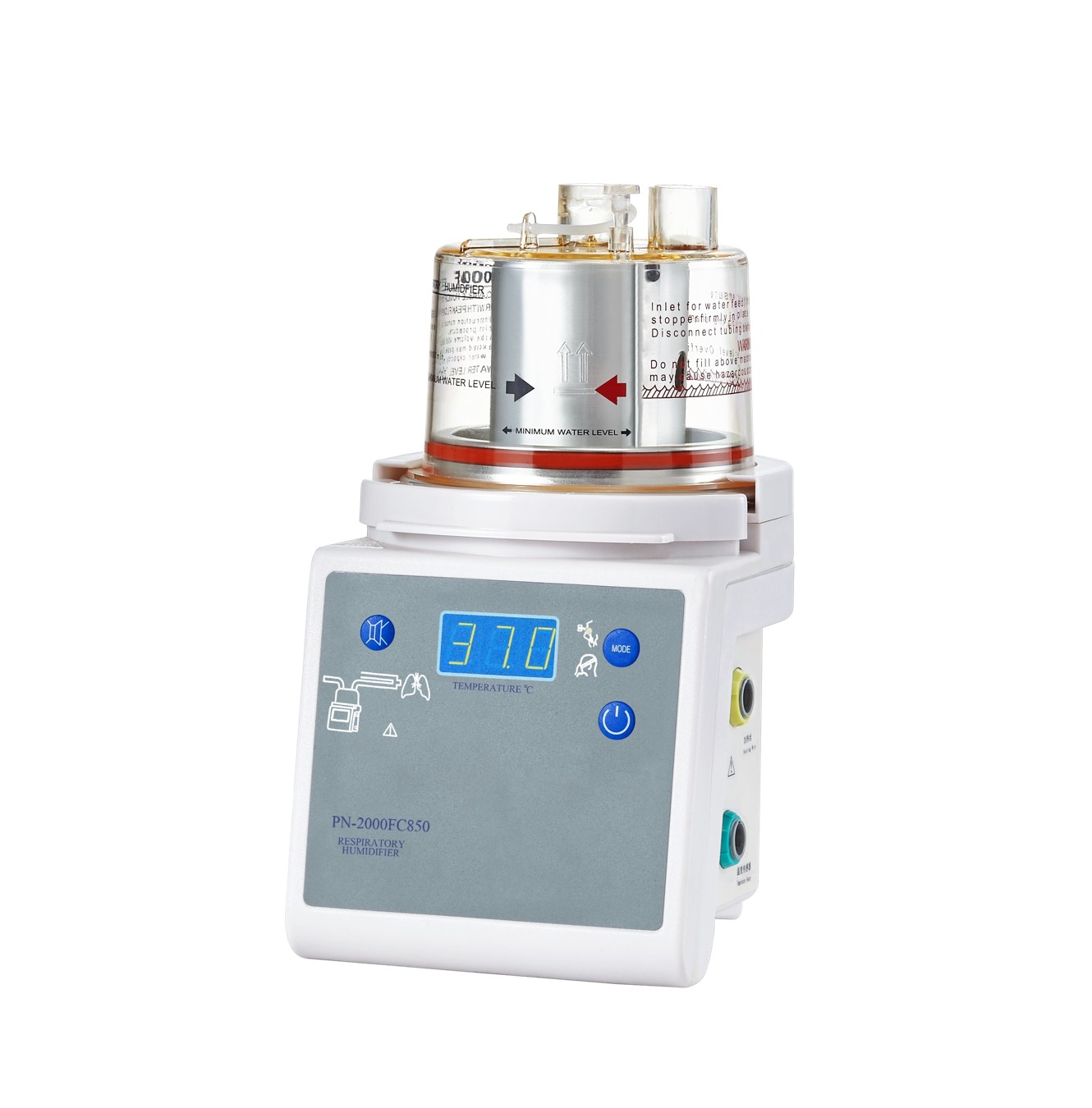

Simply install the disposable or reusable chamber onto the respiratory humidifier and fill in the water until it reaches the maximum suggested level, plug in the temperature sensor and heated wire cable to connect with the breathing circuit. After that, turn on the main machine and choose between invasive and non-invasive mode. Then the humidifier is good to go.

Features of PN-2000FC850 Respiratory Humidifier

Invasive and non-invasive mode which can adjust the temperature automically
Flow detection
Match with all kind of ventilators
Provide different connectors for pediatrics/adults and reusable/disposable breathing circuit
Built-in alarm function
Provide high quality aluminium clamp and slot plate for the blender to safely hang on the trolley

Specification of PN-2000FC850 Respiratory Humidifier

Model	PN-2000FC850
Power Source	AC 220V, 50-60Hz (Optional: AC 110V, 50-60Hz)
Heated Plate	150W
Thermal Cut Off	95±6℃
Display	Three digit, 0.56 inch, 7 segment Led
Temperature Monitoring	0-75℃
Max-temperature of Heated Plate	85℃
Heated Wire	AC 23V 60W, 50-60Hz
Power Rate	220W
Alarm	Yes
Temperature Control Setting	Invasive Mode: Chamber Outlet: 35.5-37℃, Airway 35-40℃,
Temperature Control Setting	Noninvasive Mode: Chamber Outlet: 31℃, Airway 28-34℃,
Range	10-70℃, Accuracy: ±2℃ (In 25-45℃ temperature range)
