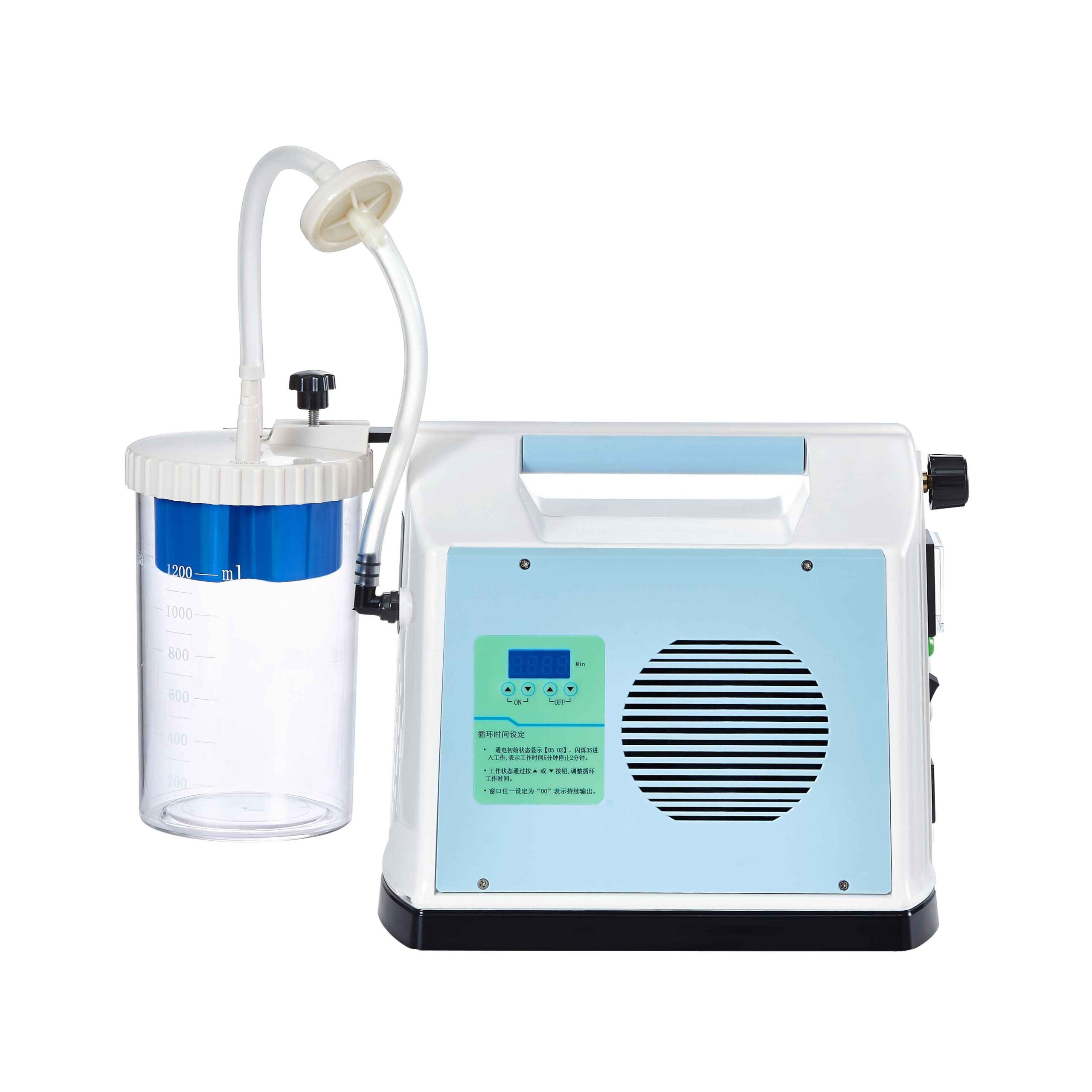

PN3000-VSD30 Medical Suction Machine
Our PN-3000VSD30 Suction Machine is a portable electric medical aspirator, which is innovatively designed, high negative pressure, and low noise. This China hospital suction machine is specially designed for absorbing thick liquid such as phlegm, blood, etc. It is one of our leading mini/small mobile suction machines, which is not only used as a suction device in the emergency room, operation room, but also at home as a health care product.
It features the time adjustment function with working time and interval time range from 0 to 10 minutes. Click the button below to check the price/cost of our suction machine for sale.
Product Description
Working Principle of PN3000-VSD30 Medical Suction Machine
Suction machines use a long thin flexible plastic tube known as a catheter to vacuum out the secretions blocking the airways. These secretions are collected in a jar attached to the machine and can be emptied after the suctioning is completed. PN-3000VSD30 is equipped with continuity/intermittence switch function and brings much more convenience for clinicians.
Features of Suction Machine PN-3000VSD30
- Up to 20 L/min flow rate
- 1200 ml jar
- Dual Modes – Intermittent and Continuous
- Quiet, Reliable Operation
- Dependable, Time Tested Gauge and Controls
- Provides Full Vac Regulation
- Low Maintenance, Easy to Service
Specification of PN3000-VSD30 Medical Suction Machine
| Model | PN-3000VSD30 |
| Mode | Continuity/Intermittence |
| Suction pump | Piston |
| The maximum negative pressure valve | ≤0.06MPa |
| Negative pressure | -0.02MPa-0.06MPa |
| Pumping rate | ≤20 L/min |
| Time adjustment | Working time adjustment range: 01-10min |
| Interval time adjustment range: 01-10min | |
| Default time:5min(ON)/2min(OFF) | |
| Container | 1200ml |
| Noise | ≤55dB(A) |
| Power source | AC 220V/110V,50-60Hz |
| Input Power | 100VA |
Practical Application of Suction Machine PN-3000VSD30
-
01 Clear the airway: Suction may be used to clear the airway of blood, saliva, vomit, or other secretions so that a patient may breathe. Suctioning can prevent pulmonary aspiration, which can lead to lung infections. In pulmonary hygiene, suction is used to remove fluids from the airways , to facilitate breathing and prevent growth of microorganisms.
-
02 Surgery suction: In surgery suction can be used to remove blood from the area being operated on to allow surgeons to view and work on the area. Suction may also be used to remove blood that has built up within the skull after an intracranial hemorrhage. Suction devices may be mechanical hand pumps or battery or electrically operated mechanisms.
