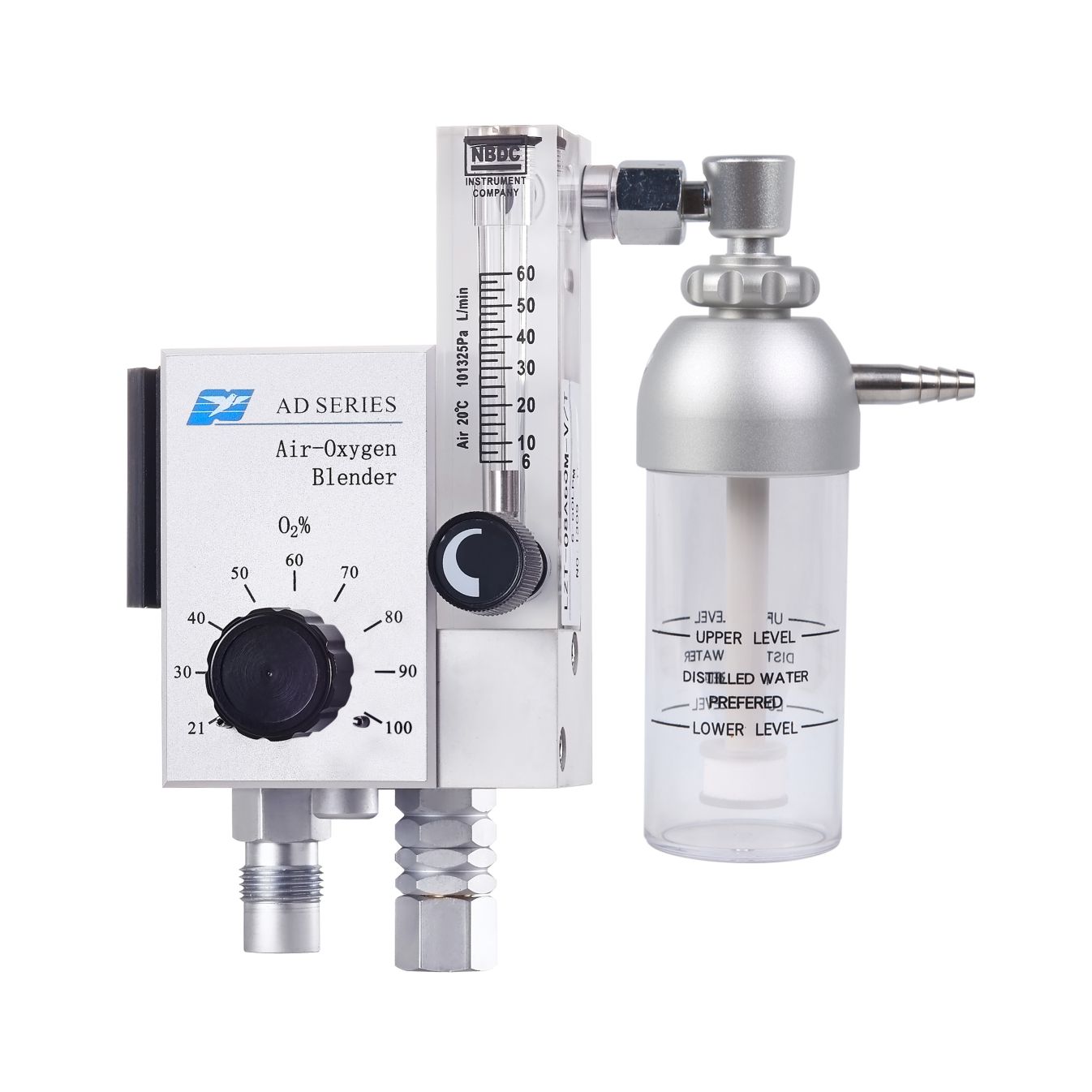

AD3000-SPA 6-60LPM Air Oxygen Blender

Accuracy, simplicity and safety are Pigeon Medical air-oxygen blender core design values. By combining the clean operation control and advanced engineering, flow and oxygen concentration level can be adjusted respectively by just a single revolving knob.

Air oxygen blender model AD3000-SPA provides an additional option on flow meter, 6-60LPM, which is best for general adult oxygen therapies such as mechanical ventilation and high flow nasal cannula equipment. Even without external power supply required, the precision of the FiO2 can reach ±3%. Mechanical alarm triggers automatically to alert the medical team if differential pressure detected.

Category: Air Oxygen Blender

Product Description

Working Principle of AD3000-SPA 6-60LPM Air Oxygen Blender

It has been an accepted fact that a medical device should be designed as simple and straight forward as possible in performing its intended task, especially for some overloaded or understaffed hospital environment. For extra flexibility and space-saving, Pigeon Medical air oxygen blender mixer can be fit in any hospital configuration, we provide durable aluminum clamp for whether portable trolley pole or wall-mount unit.

Features of AD3000-SPA 6-60LPM Air Oxygen Blender

Flow meter from 6 to 60LPM
Made with high quality aluminum alloy, anodic oxidation surface treatment
Adjust oxygen concentration level from 21% to 100%
Powered by pneumatic control, no electricity required
Mechanical alarm system by detection of pressure differential

Specification of AD3000-SPA 6-60LPM Air Oxygen Blender

Model	AD3000-SPA 6-60LPM Air Oxygen Blender
FiO2	21%-100%
Flow Control	6-60LPM
Pressure	Air/Oxygen@0.3-0.4MPa
Alarm	When gas supply pressure difference > 0.1MPa
Alarm Noise	> 57dB(A)
Number of Output	Single
Accuracy of FiO2	±3%
Bleed Flow	/
