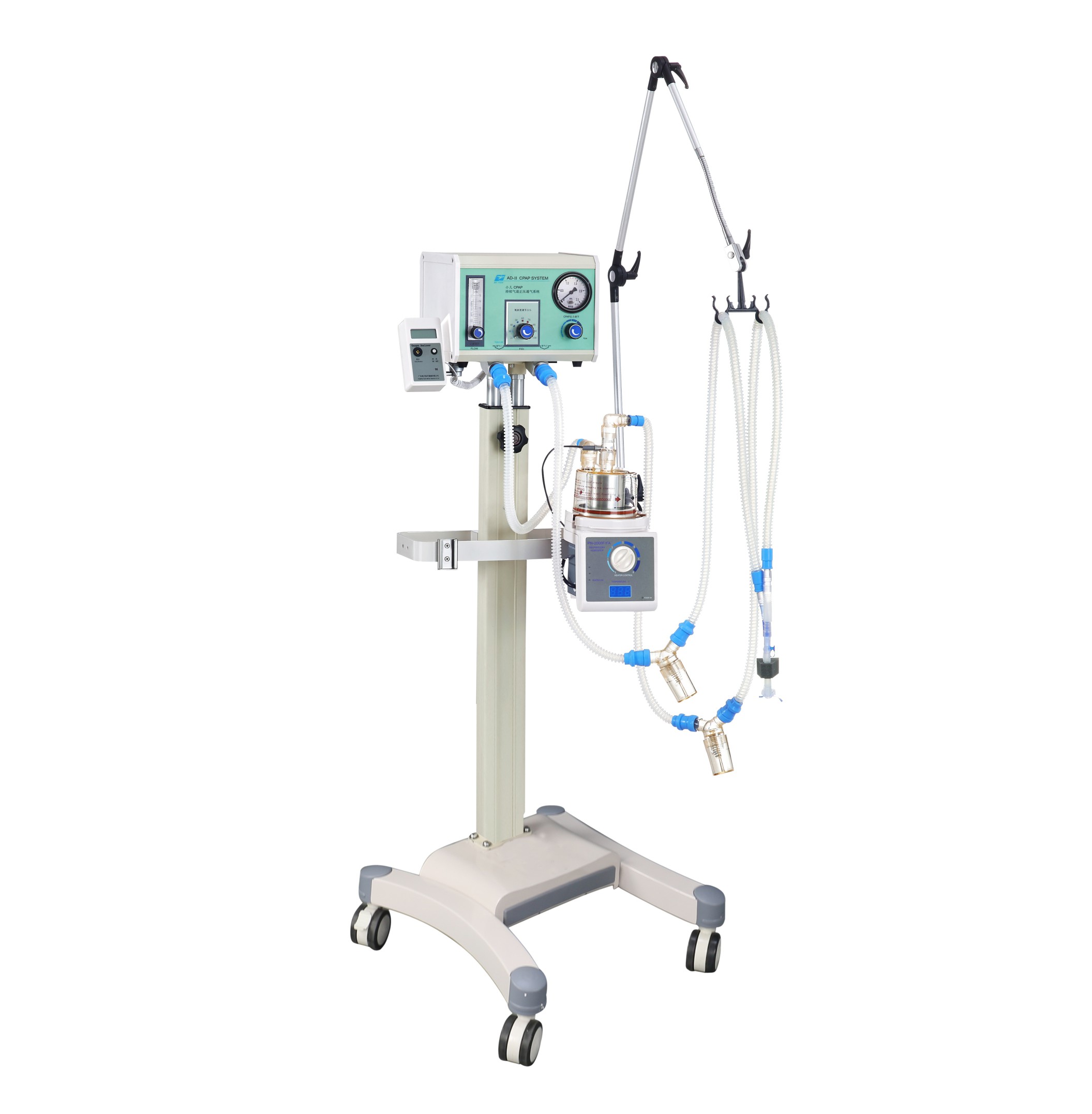

AD-II NCPAP(nasal Continuous Positive Airway Pressure)

AD-II NCPAP is suitable for premature infants, newborns, infants and children under the age of 14. With the help of AD-II NCPAP, nasal CPAP ventilation treatment can be conducted effectively through the adjustment of the ratio of oxygen and air configuration of different concentrations of medical oxygen differential pressure alarm. With the built-in alarm, the safety valve of Pigeon Medical’s Nasal Continuous Positive Airway Pressure (NCPAP) machine will start automatically so as to provide uninterrupted air supply and ensure patient safety through adjusting the oxygen concentration to the range of 21% ~ 100%. In addition,m oxygen concentration and flow can also be separately regulated with AD-II. Wet and matching medical grade air compressor or moving cars, integrated design.

Category: Bubble CPAP & NCPAP

Product Description

Working Principle of AD-II NCPAP

The general air compressor is used to supply air, and the built-in air oxygen mixer can obtain oxygen by adjusting the concentration of air oxygen. The oxygen will enter the hospital humidifier into the breathing tube and then enter the human body to assist the human body to obtain the oxygen-breathing cycle.

Features of AD-II NCPAP

Built-in air oxygen mixer and pressure gauge, more accurate data reading, standard factory equipped with oxygen meter.
Standard general purpose compressor, provide large flow air source, reinforced load-bearing support.

Specification of AD-II NCPAP

Model	AD-II
FIO2	21-100% (±3%)
CPAP	0-10cm H2O
Flow	2-18LPM
Noise	≤55dB(A)
Power Source	AC 220V/110V, 50-60Hz
Gas source	Air/Oxygen@0.3-0.4MPa
Alarm	Gas supply pressure difference > 0.1MPa
Humidifier	Standard: PN-2000F
Humidifier	Optional: PN-2000FB; PN-2000FC850
Air Compressor	PN-3000(Optional)
Trolley	Yes
Oxygen Analyzer	Yes

Practical Application of AD-II NCPAP

01 For children under 14 years of age and neonates, through the oxygen concentration ratio of high precision effectively improve patients’ smooth breathing circulation
02 Very popular medical universal oxygen supply respiratory system
